The best guide to choose baseball field lights
The factory made baseball field lights the Europe and North American baseball field lighting standards baseball stadium lights for sale
For the baseball stadium lighting design, not only the average vertical illumination and the average horizontal illumination, but also the uniformity of vertical illumination and the proportional coefficient of horizontal illumination must be achieved.In addition, it is necessary to limit the value of glare index and choose a high color rendering index and corresponding color temperature light source, so as to meet the basic functional requirements baseball field light.To ensure that the baseball players in the night training and game normal skills play, and ensure that the color TV broadcast, the players can clearly reflect the instantaneous movement and movement and movement posture, and can capture the high-speed movement of the baseball track.
The one-stop service process

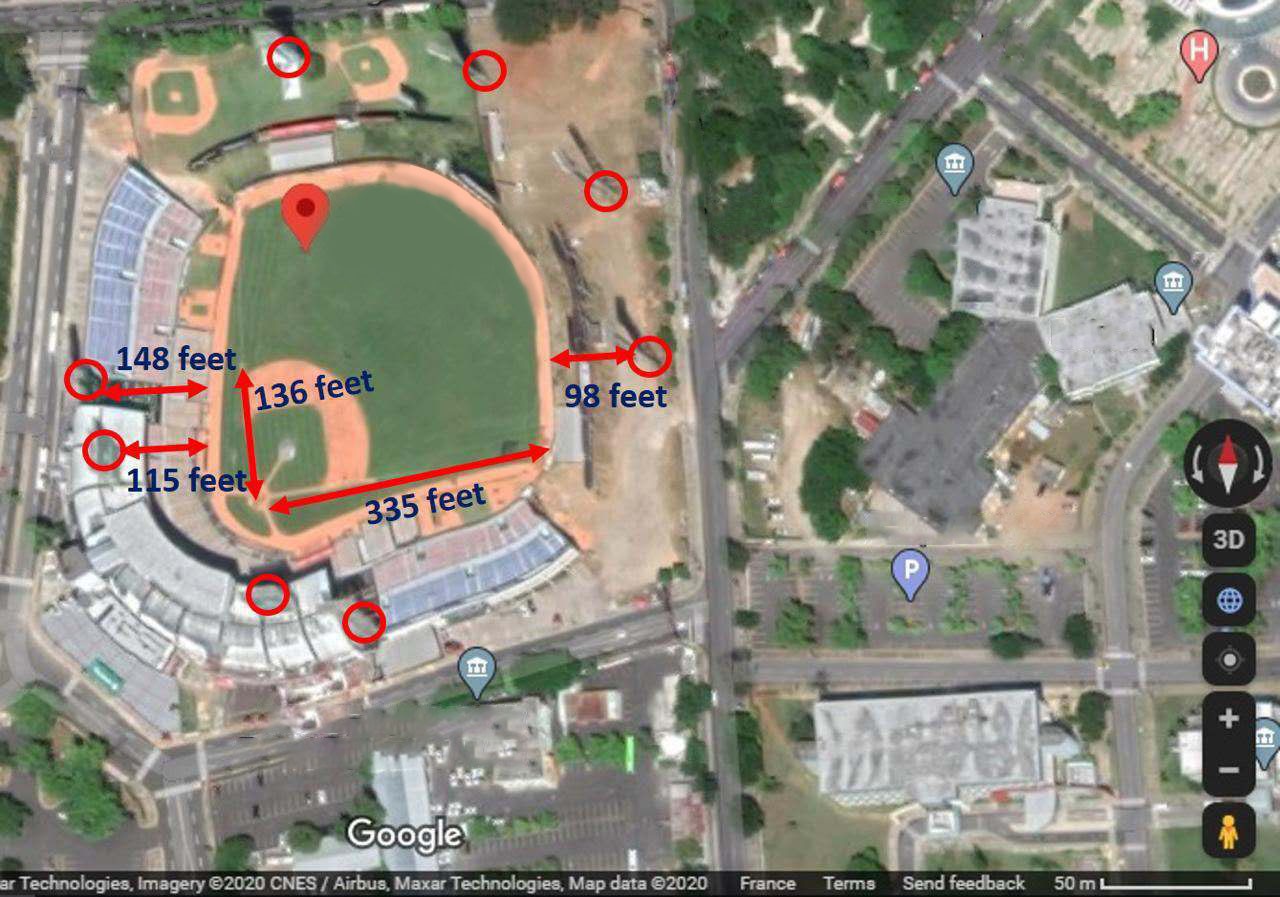

1.We will first get the site drawings you provided for analysis.
2.Design according to the requirements of your site and the relevant standards.

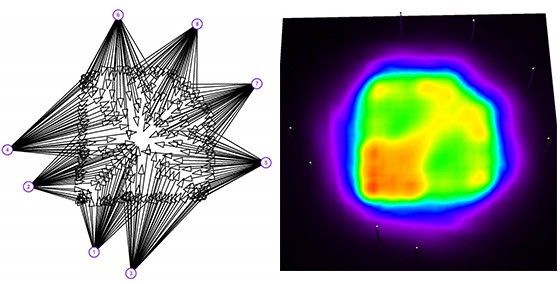

3.Engineers will conduct Dailux or AGI simulation with data.
4.Made installation instructions and provided on-site installation assistance when necessary.
5.If you have any problem, you can contact our customer service staff at any time, and we will solve the problem of customers as soon as possible.[email protected].
Pls check the blew link to see the product detail information:
Baseball stadium lighting design
We provide free lighting design for all kinds of baseball stadiums, whether it is in colleges, high schools, communities, entertainment venues or major League baseball stadiums.
Step 1: The relationship between illumination and lumens
The first step is to measure the size and height of the high mast.The power of the LED lights needed in a baseball field depends largely on the illumination requirements.For every 100 square meters, we will need 100 * 450 lux = 45,000 lumens for general, recreational or practice purposes.
So we will know that the POWER of the LED is about 45000/150 lm/W = 300 watts.
Step 2: Consider energy losses in your design
Then, if the height of the high-mast baseball field light exceeds 40 meters, it must be increased by 25 to 40 percent to increase brightness.Our lighting designer is proficient in planning and selecting the right lighting for your project.
Step 3: Choose waterproof and heat resistant baseball field lighting
Outdoor ballparks require even more lighting because led should be waterproof and able to withstand extremely high or low ambient temperatures.Then, for indoor ballparks, the cooling system is crucial for LED. This is because hot air is easily trapped inside the light, so the lamp is vulnerable to damage.To solve this problem, long aluminum fins are seamlessly connected to the heat source (LED chip).This design transmits heat from the lamp body to the surroundings.In addition, each row of the LED array has space to provide better ventilation.

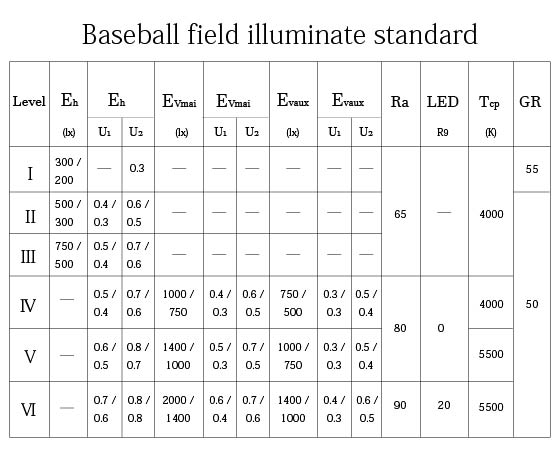

Lighting requirements for baseball parks
1.Lux level required
For standard minor League games, the infield shall be at least 540 Lux and the outfield shall be at least 320 Lux.
2.Lighting uniformity standard
What is uniformity?It represents the ratio of minimum to maximum illumination in a baseball field, or the ratio of average to maximum illumination.The best baseball field lighting systems should be as uniform as possible to avoid undesired dark areas.Uniformity is 0.6 infield and 0.5 outfield (minimum to maximum ratio).As a result, we can see that the infield requires a higher standard.
Pls check the blew link to see the more detail information about Cricket ground light:
3.Stroboscopic lighting
The top speed of a baseball is about 100 to 150 km/h.Our LED baseball field lights support a 6000 Hz high speed camera.Therefore, we will never miss any critical moment.
4.The CRI
According to the guidelines, baseball fields are lit at least 70 CRI. Our LED baseball field lighting have 80-90 CRI that allow the camera to capture “real” colors.
The cost of baseball stadium lighting
Before purchasing new or replacement baseball field lighting, you may want to know the cost.In fact, if you just talk about cost, it has several meanings.For example, the cost of baseball field lighting , the cost of electricity, the cost of installation, and so on.Now, we’ll give you the final guide on the price of baseball stadium lighting and how to save money.
Pls check the blew link to see the product detail information:
1.Manufactured
If they were made in North America or other European countries, the price would be higher.This is because labor, material costs and factory rents are higher.Most of the money you pay will end up in the pockets of other businesses, not stadium lights.The question now is how to save money?
The easiest way is to find reliable companies with production lines in Asian countries.Although spherical lighting is cheaper to make, you can get the best cheap lighting if you can find a reliable company. Baseball stadium lights from the U.S. and Asia vary in price by as much as 30% to 100%.For example, the total cost of a light bulb at a standard baseball stadium is about the same.If you buy from the US, the price is between $120,000 and $200,000, but in China it is about $40,000 to $90,000.If you buy baseball field light in this cost-effective way, you can definitely reduce project expenses and increase profits.
2.Lighting type
Many baseball fields or stadiums still use metal halides, halogens or HPS floodlights.They cost much less than led. As a result, many contractors will be inclined to purchase these conventional lighting equipment for use in baseball stadiums.Buyers may think they can save money immediately.But that’s not entirely true.
For the same power rating, halogen lumens are 10 times smaller than led. This means that you will need 10 times more lighting if you choose a halogen lamp.For example, a single 500-watt halogen halogen baseball field light costs about $40 to $80, and a 500-watt LED costs about $400 to $500. You would need to buy 10 x 500 W halogens to produce the same brightness as a 1 x 500 W LED.The total cost will be almost the same.Now the question is, can you give me a strong reason to buy an LED baseball field light instead of a halogen or metal halide?
Life.You need to replace the halogen or MH lamps every one to two years.This is because their brightness drops rapidly.You will notice that the baseball field light becomes very dark.You will then need to cover the additional cost of buying a new baseball field lighting.
Not so with led. That’s because led have a lifespan of 80,000 hours.Brightness can be maintained at very high levels for decades.Therefore, in the long run, the maintenance cost of baseball stadium lighting is negligible.
Pls check the blew link to see the more detail information about rugby field light:
3.Baseball standards
The concept is simple.The more professional the game, the more expensive it is to light a baseball field.For example, if your high school baseball diamond is designed for training or entertainment purposes, the baseball field lighting cost (LED) is approximately.$20,000 to $50,000.By contrast, if international leagues were held at the ballpark, the total cost would rise to $70,000 to $140,000.
Why is it more expensive?This is because in professional baseball games like this, we will need additional LED baseball field light to enhance the horizontal and vertical brightness of 4 K and 8 K TV broadcasts.In addition to the lumen output, we also need to maintain high lighting uniformity for the baseball.As a result, the baseball field lighting design is more complex, so the cost of the lamp is higher.
However, Green Light also offers free lighting for different types of courses.In addition, because we have factories in China, our LED baseball field lights are very cheap.We conduct quality control and inspection, so we always provide the best ballpark lights.Contact us immediately for quotes and free lighting advice.
4.Operating cost of baseball stadium lighting
As an electrical contractor, you may also want to know what I like about upgrading ballpark lights to led. The main benefit is lower operating costs.So, how much does it cost to run LED and halogen ballpark lighting?
Let’s take a 50,000 W LED baseball field light as an example.Daily operating cost is $0.12/1000 (average US electricity bill) x 8 hours (service time) x 50,000 W = $48.We can quickly compare this value to a halogen.If the halogen lights up the pitch, we will need about.So, due to the electricity used per day, the ballpark would cost $0.12/1000 x 8 hours x 500,000 W = $480.Their difference is $432!
Remember, this is just the daily running cost.By switching to LED lights, you can save about.Due to the baseball field lighting in the stadium, it costs $12,960 per month and $155,520 per year for electricity.
Best LED baseball stadium lighting feature
1.Our baseball stadium lighting system is bright enough
Whether in recreational, professional, university or even league stadiums, high quality and bright baseball field light must be installed to provide proper lighting.Our LED baseball light come with 100 to 10,000 watts per light, enough to light an entire baseball field.We are a sports lighting supplier specializing in high power lighting.
2.Our LED festival lasts for a long time
We use LED baseball field lights because they use 80 percent less energy than metal halide lights.We also had 80,000 hours of light, the equivalent of over 25 years, working eight hours a day;As a result, the technology began to gain popularity.
It is practical and worthwhile to install LED in this type of course, although the light price is a little higher than MH due to the high-end technology involved.If you convert our baseball field lights, the ballpark lights can save up to $100,000 per year in operating costs.
Pls check the blew link to see the more detail information about football field light:
3.Our LED lights do not need preheating time
Green Light LED turn on and off immediately, without the need to preheat for 10-15 minutes as traditional lighting does.Our products are also compatible with motion sensors to enhance stadium security.
4.Our LED baseball field lights reduce light pollution
The potential intrusion of light claimed by the design standards for motion lighting must be addressed.The threshold varies according to the nature of the area near the baseball field.For example, dense urban areas allow a light intrusion level of 2.1 FC / 1.5 FC, while rural remote areas allow only 0.42 FC / 0.3 FC. In addition to the pitch, our engineers will also consider the brightness outside the park to minimize light pollution.
If you have detailed project information, you can contact our Green Light design team immediately to get the cost plan.[email protected].
