Swimming pools lighting purchase guidance
anti glare LED stadium light with cheap price the best led flood light factory waterproof Swimming pools lighting manufacture
That can host professional competitions are usually indoor, so they must be equipped with good lighting systems.Lighting is an essential part of both the installation of a new swimming pool and the maintenance of an existing one.For swimming pools or water sports centers, it is important to have an appropriate level of illumination because the swimmer and lifeguard cab can see clearly above or below the water.If the pool or stadium is designed for professional competitions such as the Olympic Games or FINA World Swimming Championships, the brightness adjustments will be more stringent as lux levels should be maintained at least 750 to 1000 lux. This article gives you the final guidance on how to light a swimming pool and how to choose a lighting fixture that complies with the regulations.
Swimming Pool lighting design
|
Swimming Pool Areas |
Lux Levels |
|
Private or Public Pool |
200 to 500 lux |
|
Competition Aquatic Center (Indoor) / Olympic-size Swimming Pool |
500 to 1200 lux |
|
4K Broadcasting |
> 2000 lux |
|
Training Pool |
200 to 400 lux |
|
Spectator Area |
150 lux |
|
Changing Room & Bathroom |
150 to 200 lux |
|
Swimming Pool Aisle |
250 lux |
|
Chlorine Storage Room |
150 lux |
|
Equipment Storage (Heat Pump) |
100 lux |
1.Illumination (brightness) levels of swimming pools lighting in different areas
The first step in the design of swimming pool lighting is to study the illumination level requirements.
As can be seen from the above table, the lighting requirements for the recreational swimming pool are approximately.500 Lux, while the brightness standards for competing aquatic centers are increased to 1,000 to 1,200 Lux. Professional swimming pools require high lumens because bright lights provide a better environment for broadcasting and taking photos.This also means that swimming pool lighting is more expensive, as we need to install more illuminators in the ceiling to provide adequate lighting.
In addition to the pool area, we also need to maintain sufficient brightness for the audience.Once again, according to IES, the lux level in the pool spectator area is about 150 lux. This is good enough for the audience to read the text in their seats.In addition, lower illumination values were observed in other areas such as locker rooms, aisles and chemical warehouses.This lux level of illumination can stimulate swimmers or staff.
Pls check the blew link to see the more detail information about Cricket ground light:
2.How many floodlights do I need to light up the pool?
After looking at lux levels of lighting, we may still not know how many lights or lighting power we need.Take an Olympic-sized swimming pool for example.Since the size of the swimming pool is 50 x 25 = 1,250 square meters, we need 1,250 square meters x 1000 lux = 1,250,000 lumens to light up the 9 lanes.Since our LED lights have a lighting efficiency of about 140 lumens per watt, the estimated power of pool lighting = 1,250/140 = 8,930 watts.But that’s just the theory.We will need to provide additional power for lighting in the auditorium and the area around the swimming pool.Sometimes we need to increase the power of the lights by 30 to 50 per cent to meet the lighting requirements of IES swimming pools.
To choose the best ceiling lighting for an indoor swimming pool, please feel free to consult our engineer (our email: [email protected]).We offer free lighting advice and design.
How to change the swimming pool lighting?
Sometimes we want to replace the metal halide, mercury vapor or halogen floodlights in the swimming pool.Metal halide lamps have many limitations, such as short service life and long warm-up time.If you are using a metal halide lamp, it will take about 5 to 15 minutes to reach maximum brightness.But that’s not the case with LED.After turning on the lights, your swimming pool will immediately reach its maximum brightness.
To replace pool lights, one of the main considerations is equivalent power for metal halides or your existing lighting equipment.For example, our 100-watt LED lamp can replace 400W metal halides, while our 400W LED is equivalent to 1000W MH.By using new lighting with similar lumens and lux outputs, the swimming pool or spectator seats are not too bright or too dark.In addition, the reduction in electricity consumption has saved the swimming pool’s electricity bill.
Another incentive to convert swimming pool lighting to LEDS is that we can save up to 75% of our energy.Due to our LED has a high luminous efficiency of 130~150 lm/W.At the same power consumption, LED emit brighter light than metal halides, halogens or other conventional lighting solutions.
Pls check the blew link to see the more detail information about rugby field light:
3.Location of swimming pool lighting (how to install)

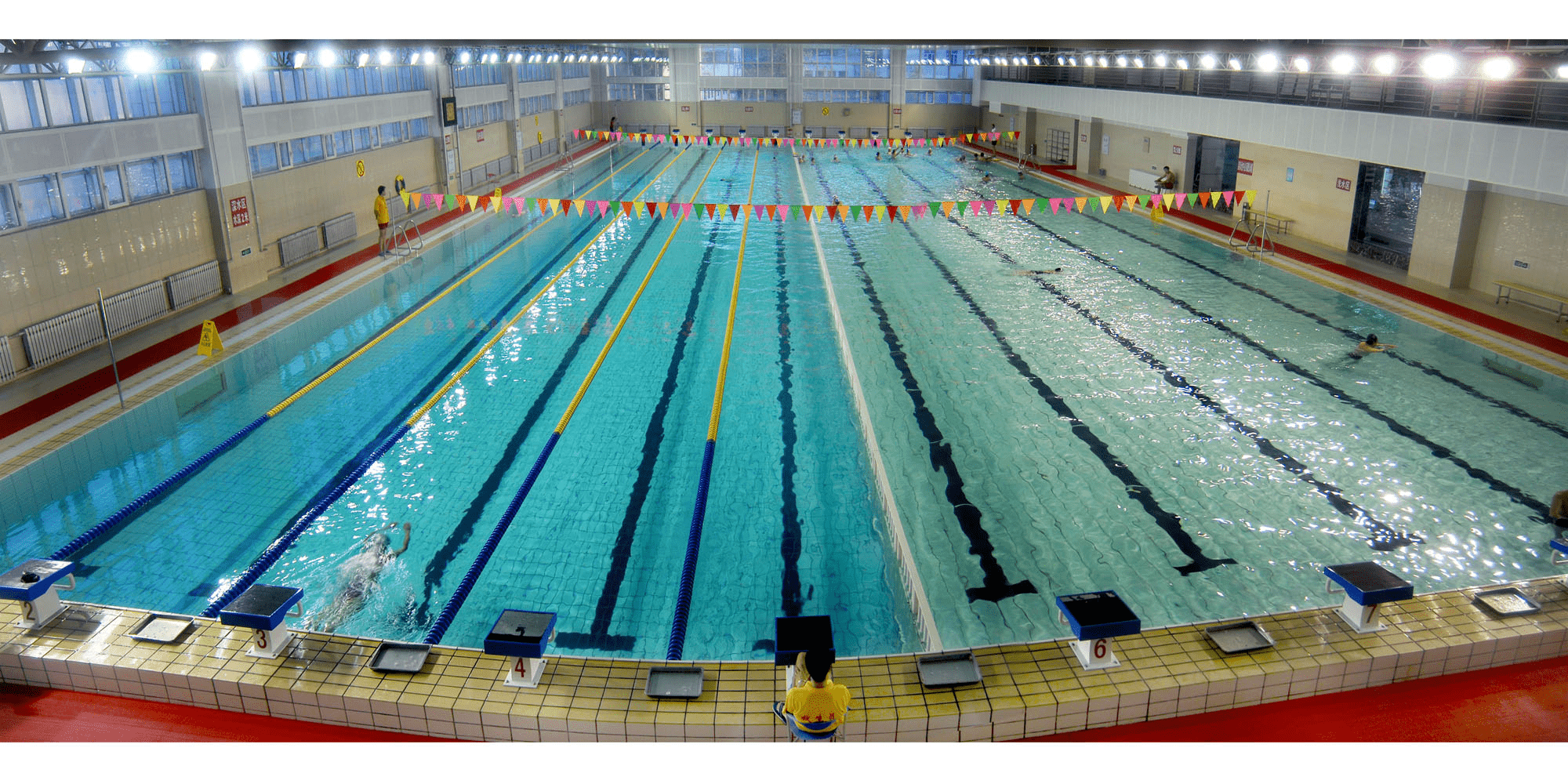

How should we place the ceiling lighting for the water sports centre?Should the light face up or down?Floodlights should not be placed directly over the swimming pool water.This is because direct lighting creates a strong glare that affects the line of sight of swimmers and spectators.Especially for backstroke swimmers, the glaring lights above the pool can irritate them.To solve this problem, we can install lighting next to the swimming pool and use tilting lighting to illuminate the pool.In this case, the glare caused by water reflection will be reduced.
Another way to light up a swimming pool is to use secondary reflections.This means that the light points to the ceiling and then USES reflected light to illuminate the swimming pool.This is one of the best methods, because the ceiling ACTS as a larger diffuser, so the lighting is more uniform.However, because the ceiling absorbs some of the light, it consumes more energy, so we will need extra power and LED lumens.
4.The color of swimming pool lighting is mild CRI
The color of the lights inside the swimming pool is really important and the following table summarizes the recommended color temperatures for different situations.
|
Type of Swimming Pool |
CCT |
CRI |
Comments |
|
Recreational / Public Pool |
4000K |
70 |
For swimming holding non-televised competitions. 4000K is soft and comfortable to see. The light color is like what we can see in the morning. |
|
Competition Pool (Televised) |
5700K |
>80 (R9 >80) |
For international competition such as Olympic Games and FINA events. |
|
Customized Application |
7500K |
>80 |
By using the 7500K lighting, the water becomes bluer, which is favorable to the audience. |
If you have any special requirements for swimming pool lighting with different color temperatures, please feel free to contact our engineers for customization.
5.RGB color-changing LED light show
Before the start of the exciting swimming competition, we can perform an amazing light show using underwater RGB LED lights.Discoloration lights can produce 16 million colors.By using the DMX control system, you can automatically change the color of the lamp.
Pls check the blew link to see the more detail information about football field light:
6.Special precautions for swimming pool lighting
A.Waterproof design
All lighting in the swimming pool shall be waterproof.The relative humidity in the swimming pool stadium is higher because of the evaporation of the pool water.If lamps are not waterproof, they can easily go out and cause electrical leakage.
B.The lamp body material
Our LED lamps are made of anti – corrosion aluminium alloy lamps.The lens is made of polycarbonate or glass, not acrylic, because polycarbonate is more durable and the glass won’t turn yellow from environmental damage for 50 years.
Pls check the blew link to see the more detail information about baseball field light:
C.The patch vs COB
SMD LED chips are used in our pool lighting fixtures.The advantage of using SMD chips is that glare can be reduced by 50% compared to COB.Because SMD is a smaller point light source and COB is concentrated, glare control is better.
If you want more information and free lighting advice, please feel free to contact us and we will be able to give you a reply within 24 hours (our email: [email protected]).
