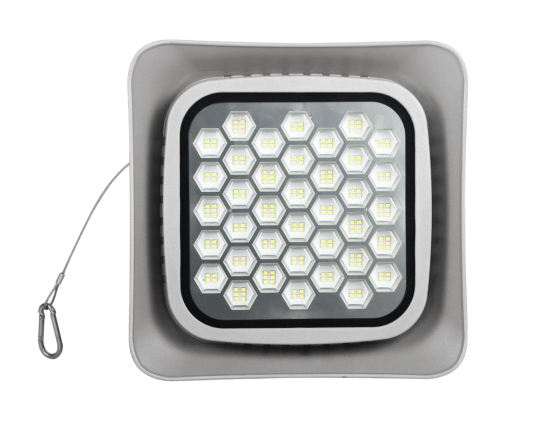

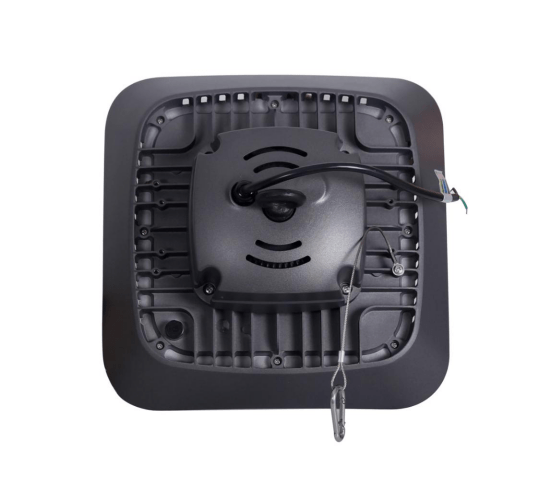

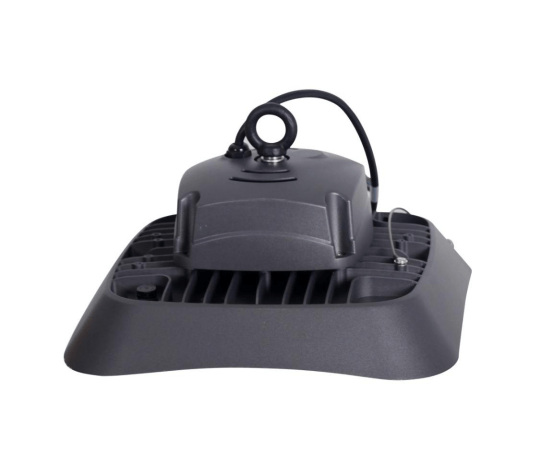

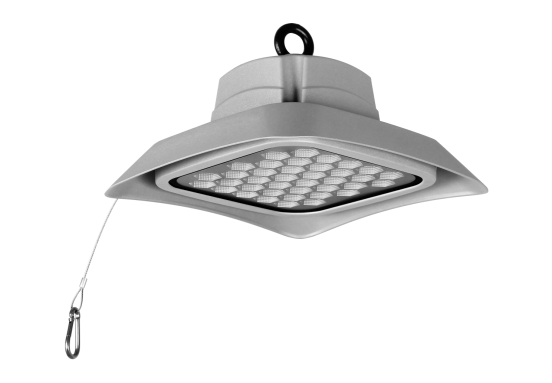

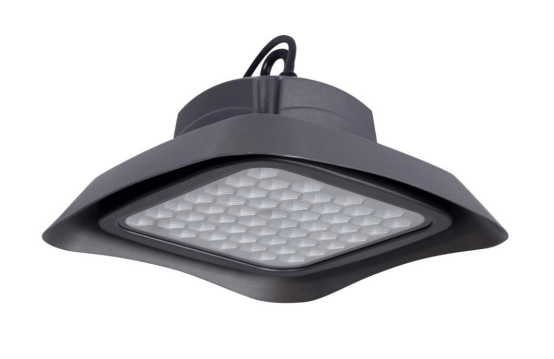

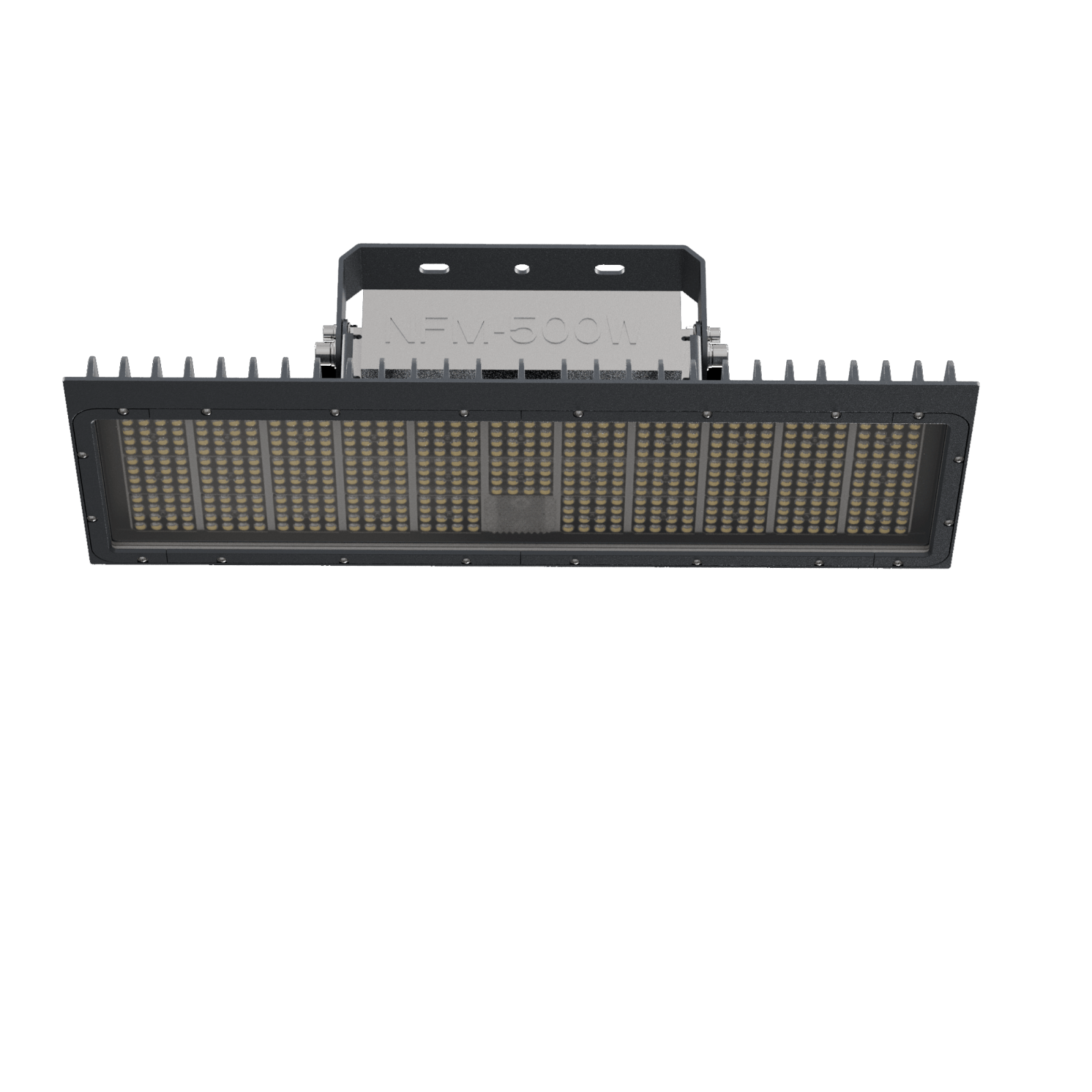

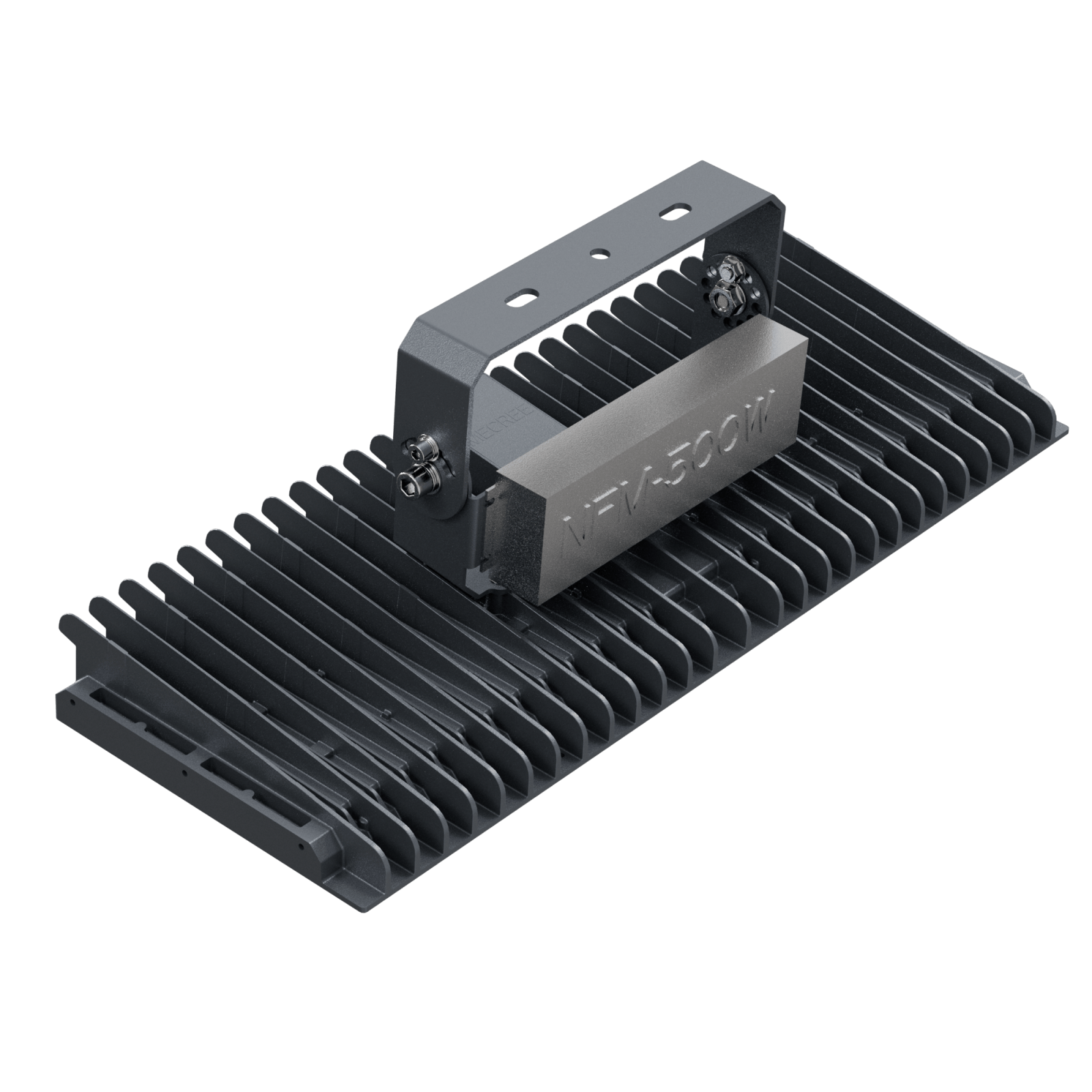

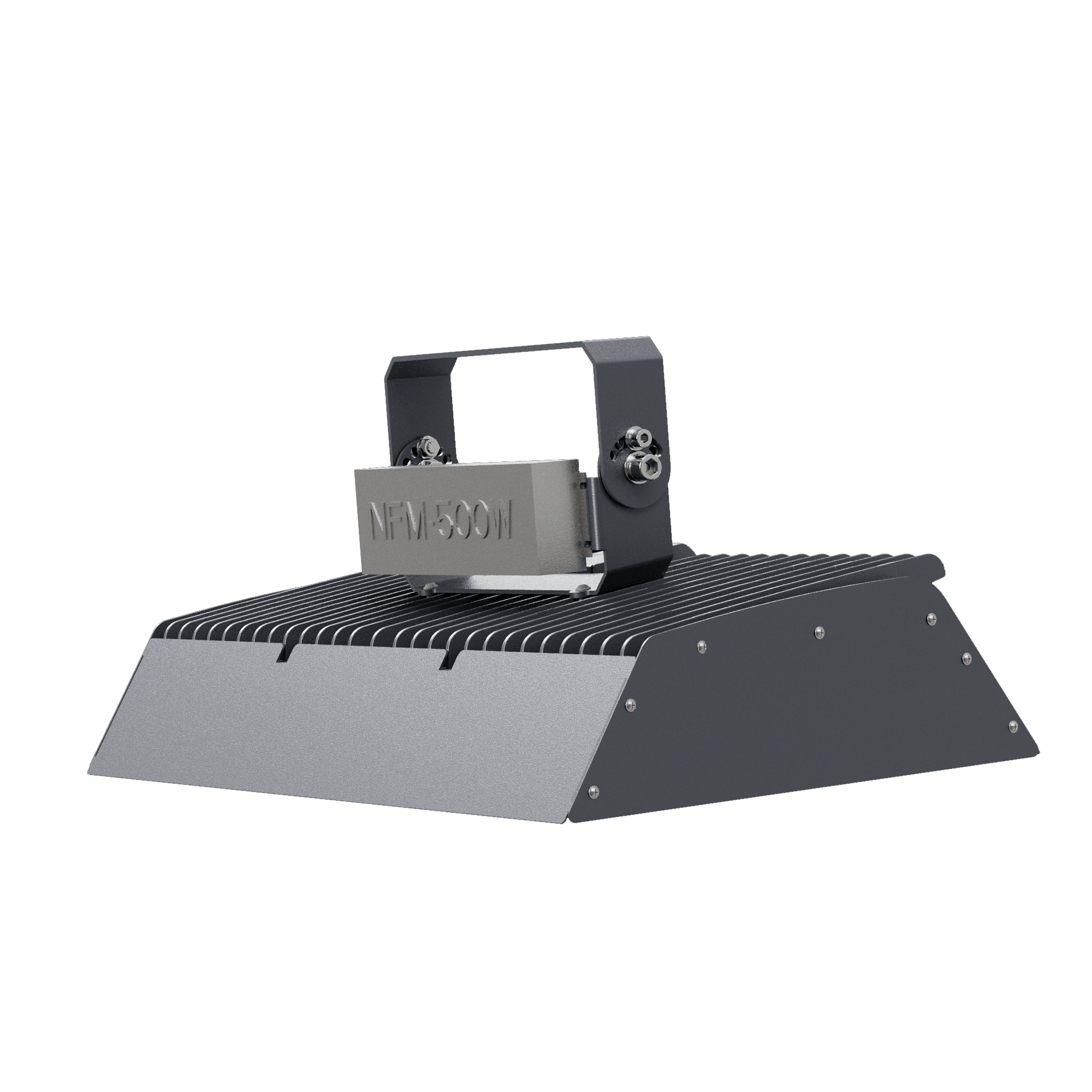

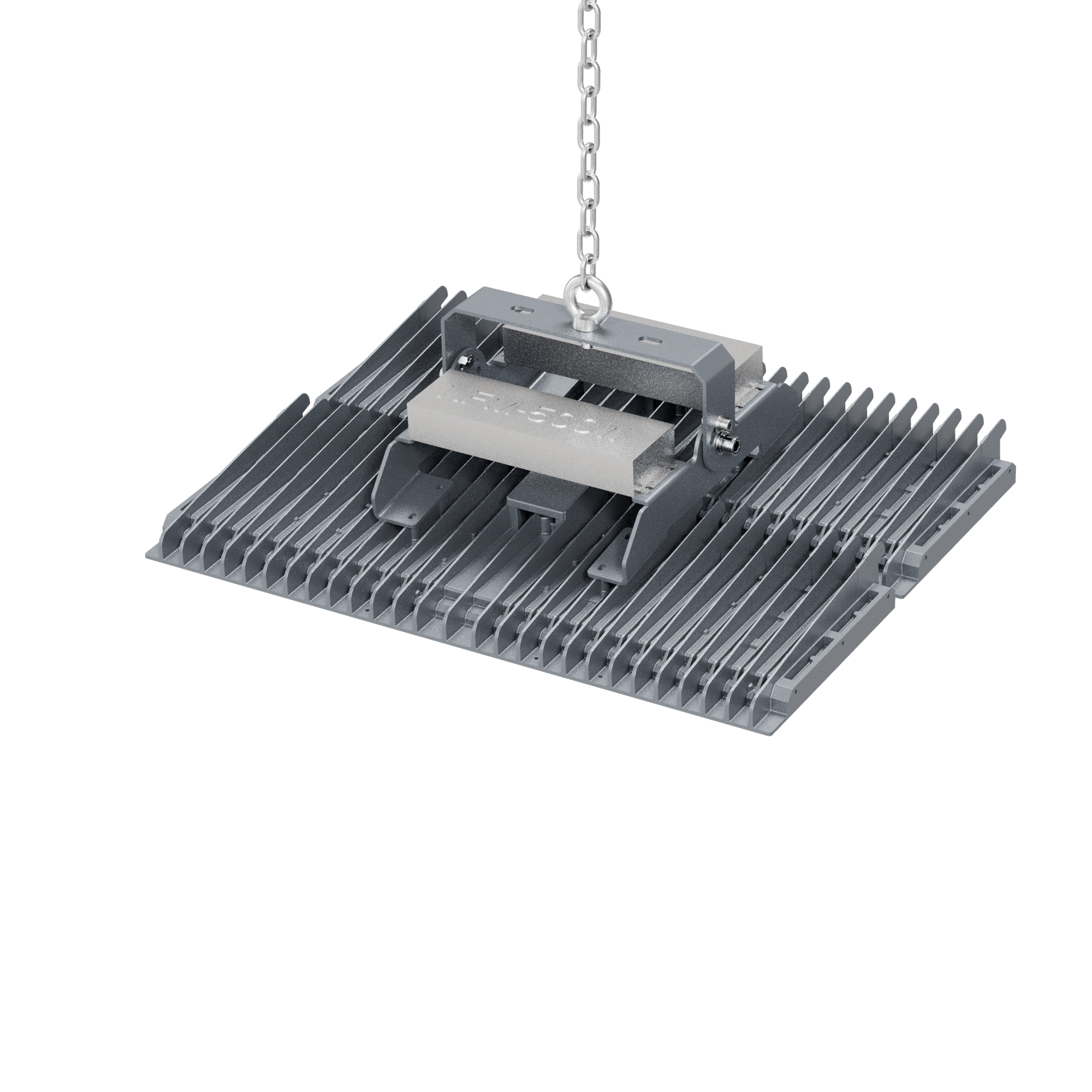

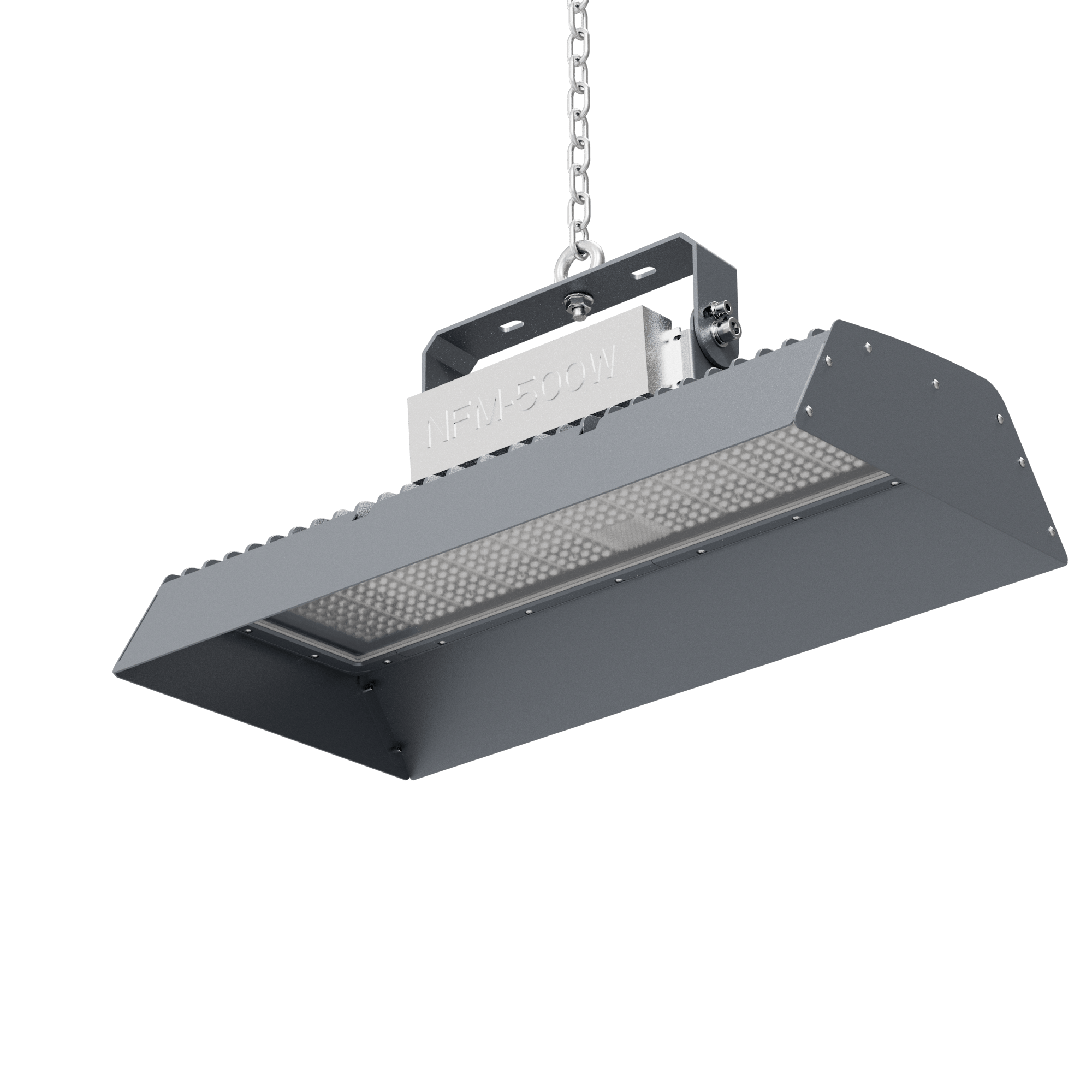

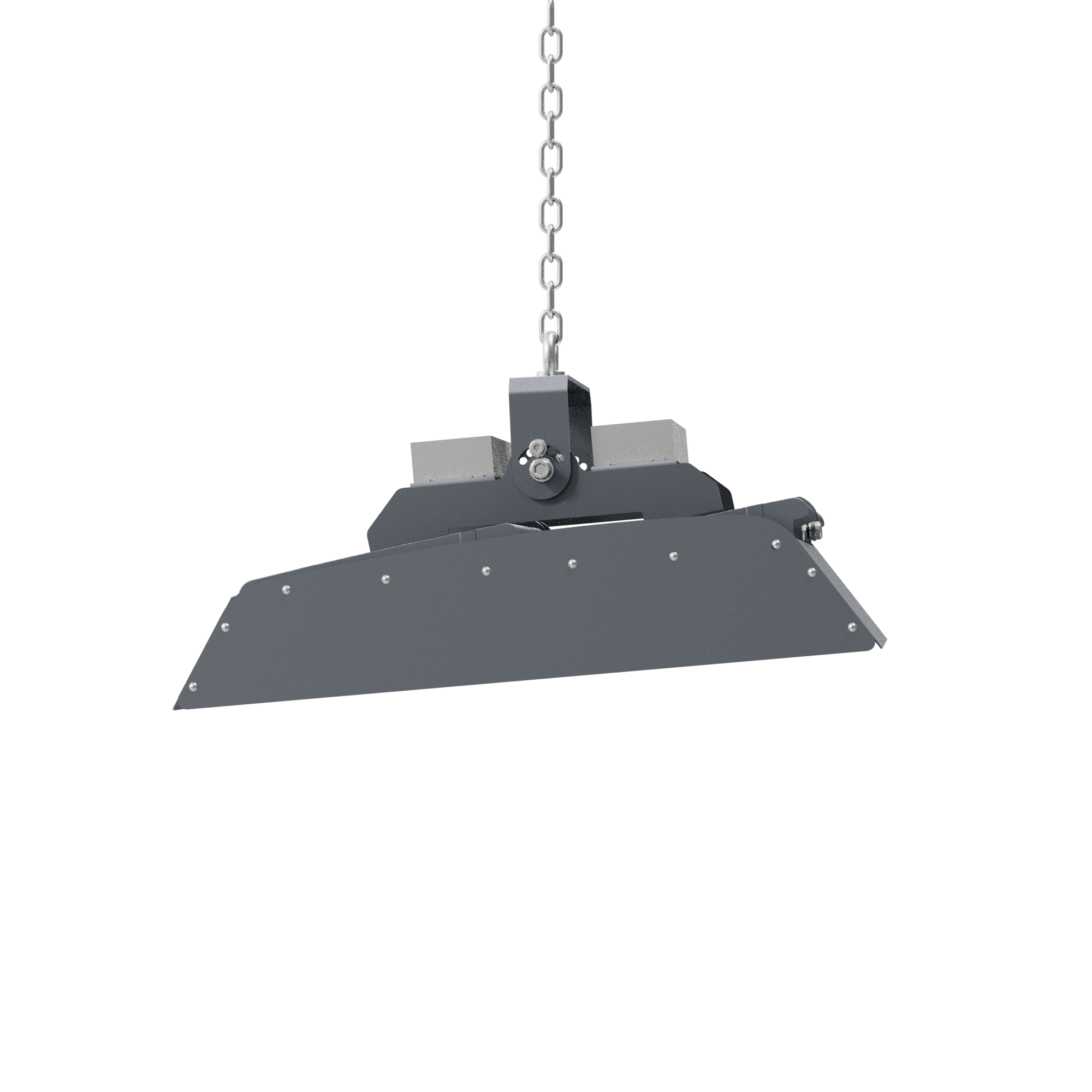

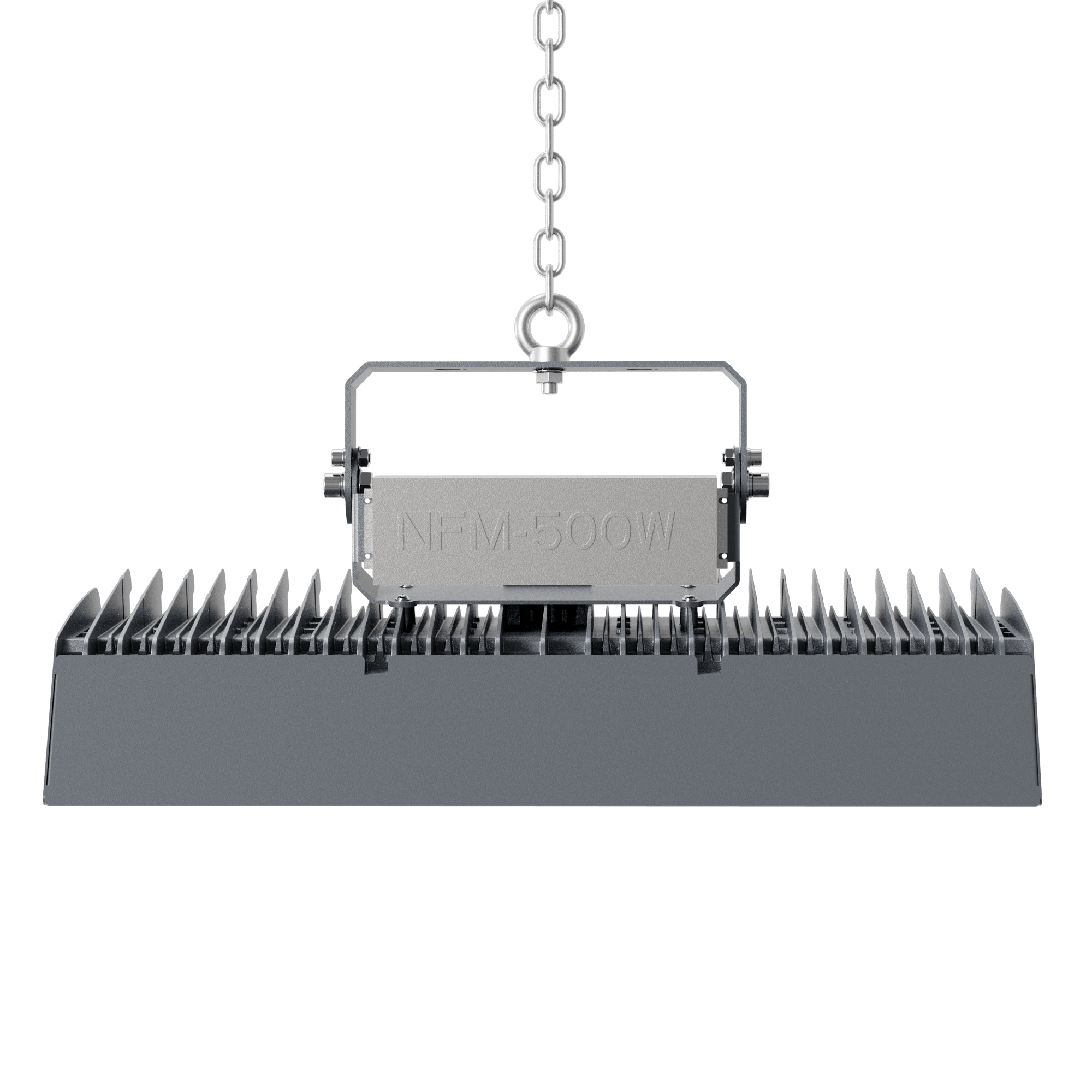

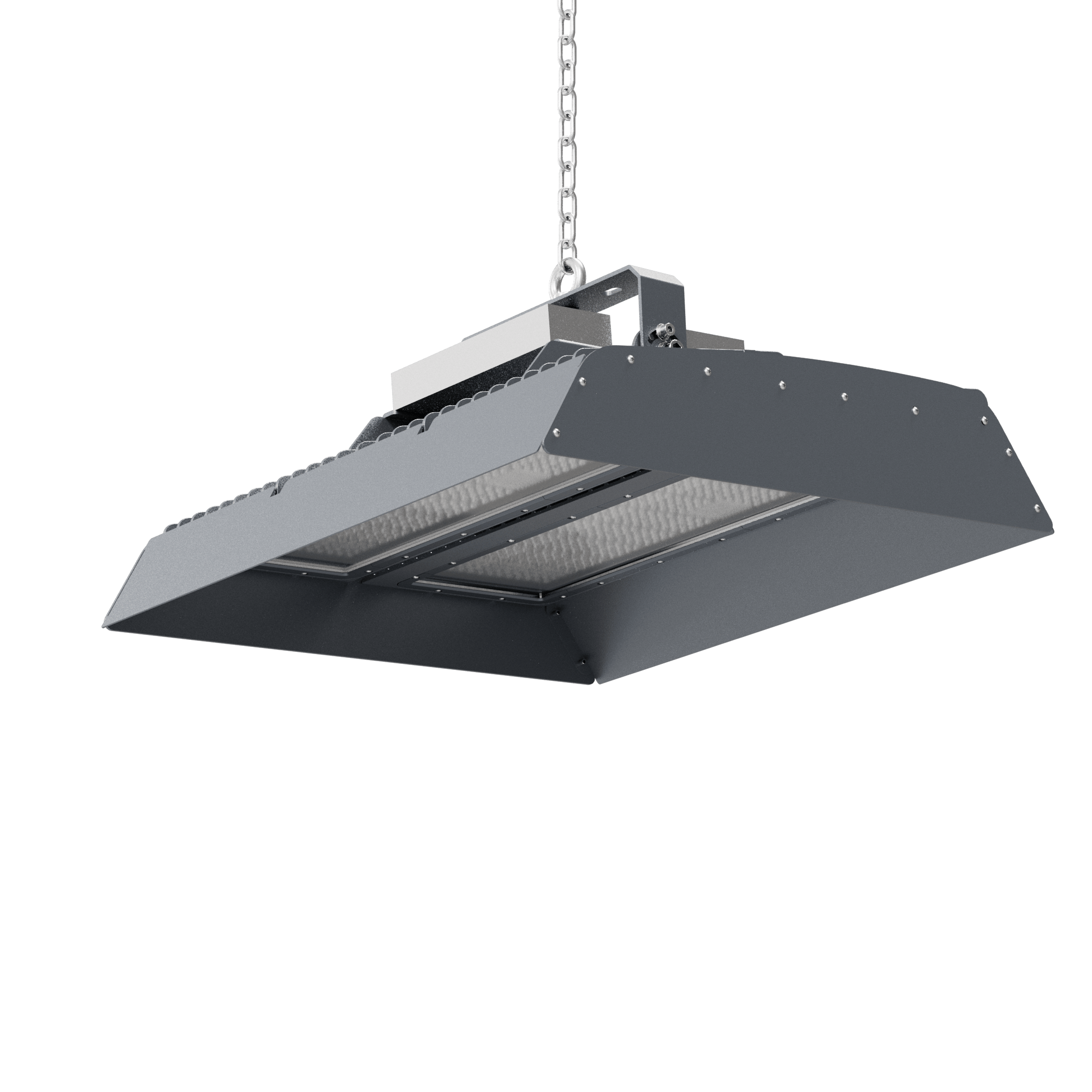

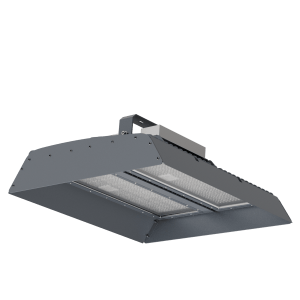

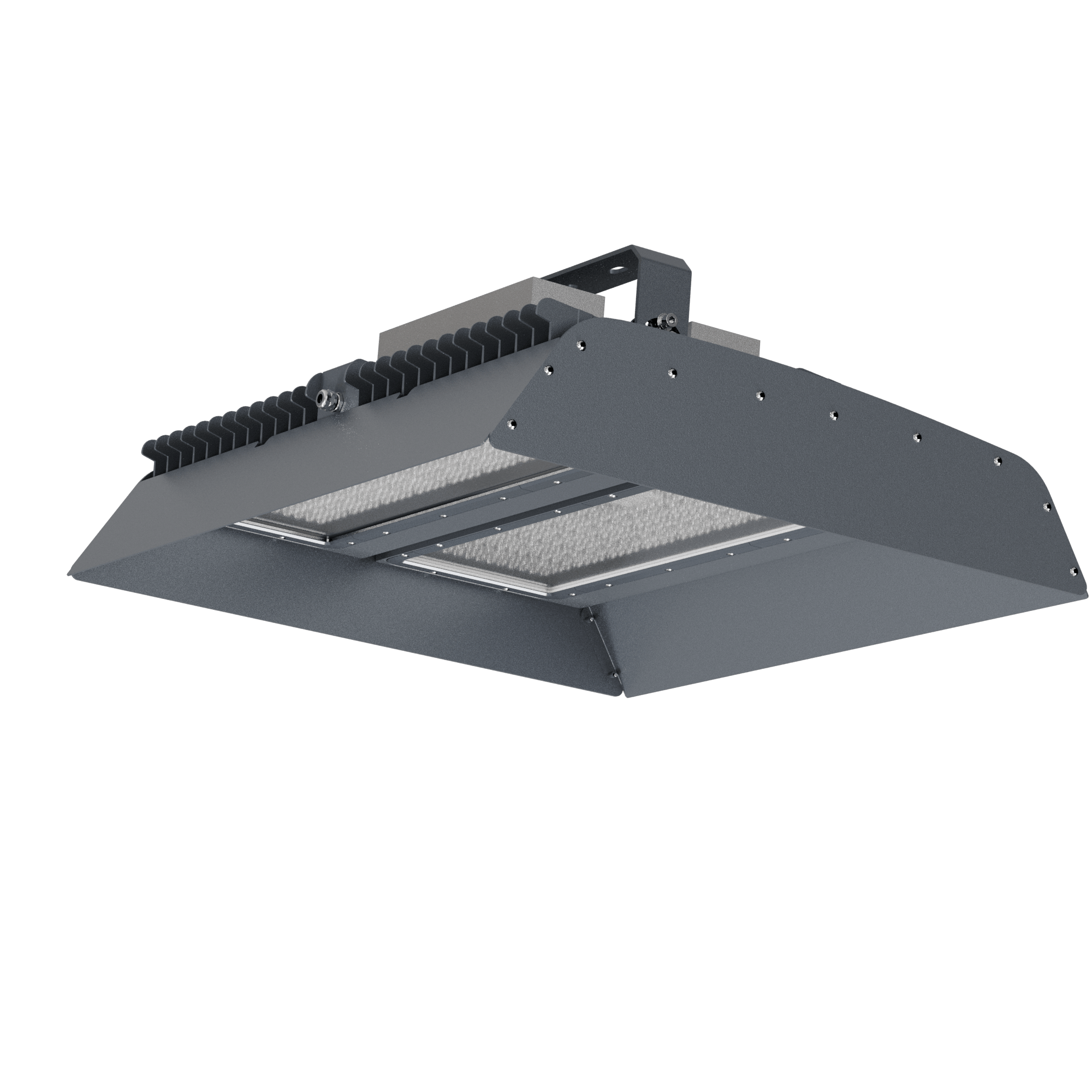

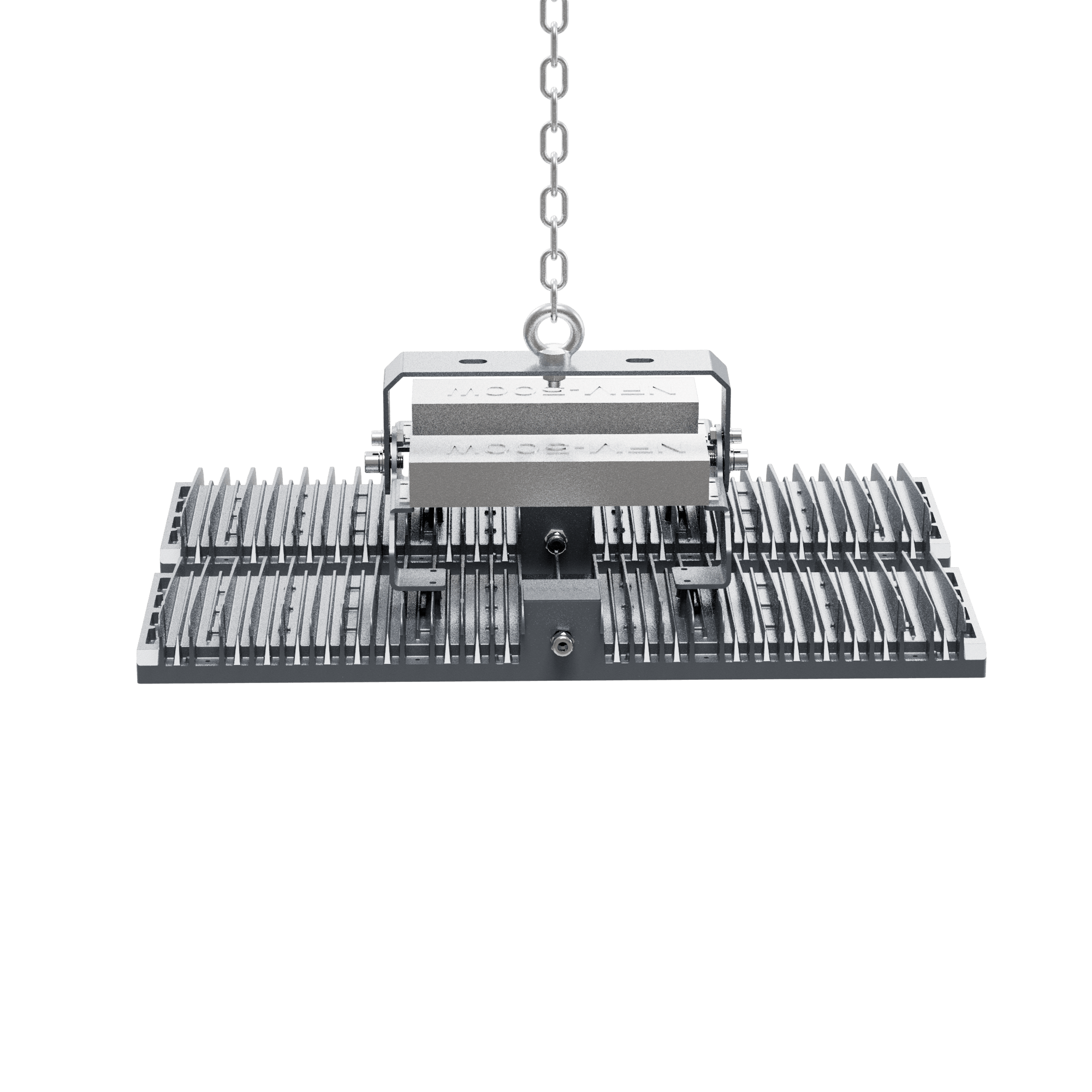

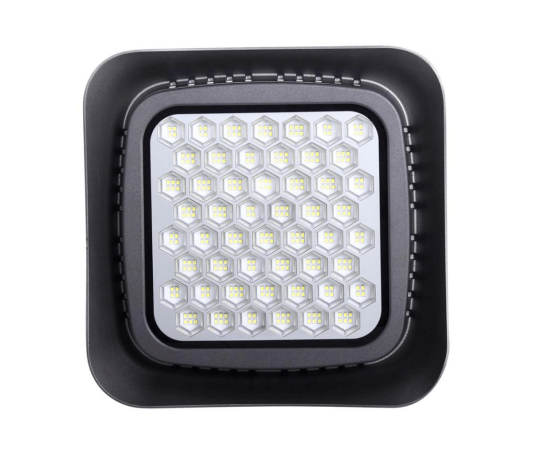

CHECKERBOARD SERIES HIGH BAY LIGHT

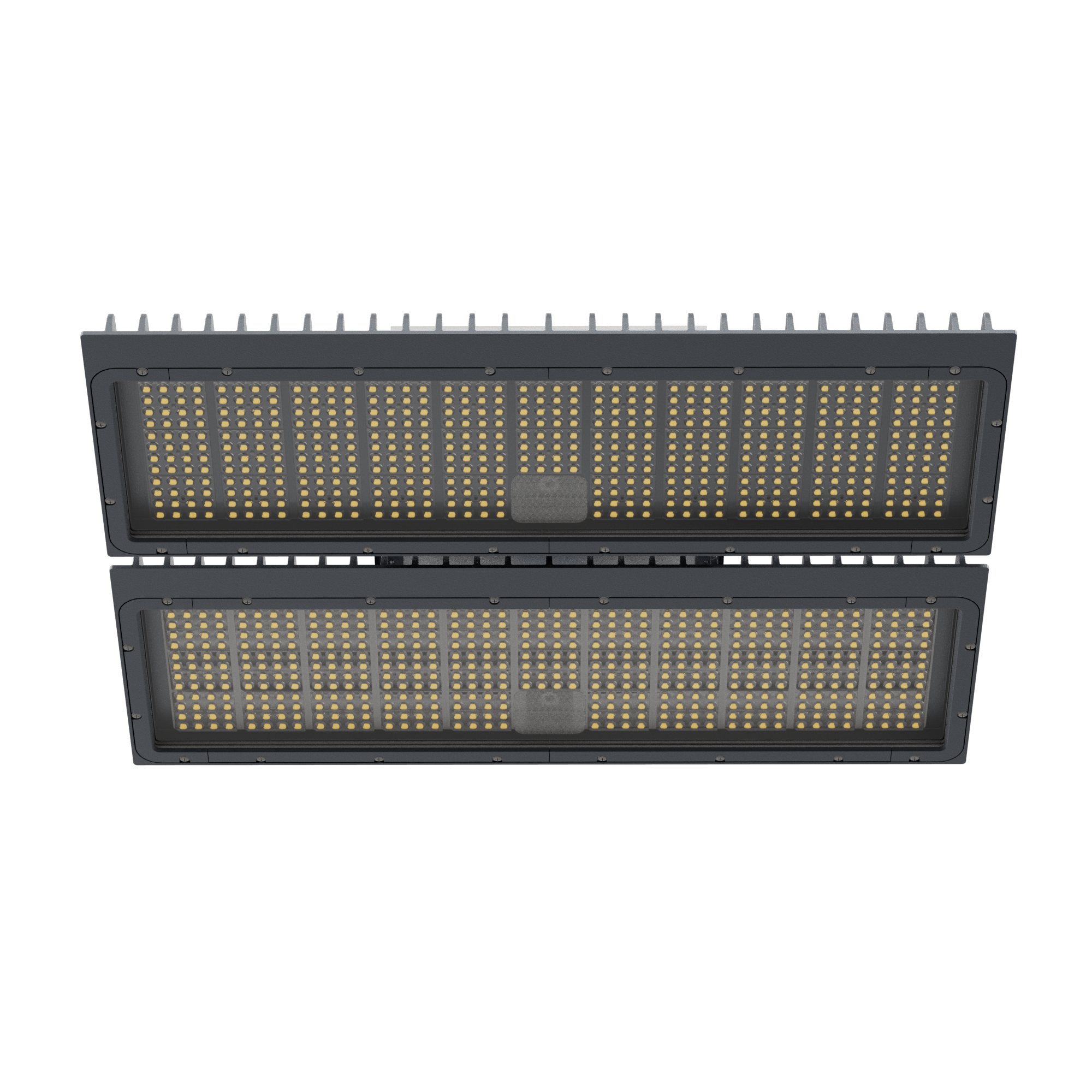

The design of the luminous surface takes a checkerboard shape, which maximizes the vertical downward light distribution, provides good uniformity and establishes the preset light within the allowable Angle.The unique square design breaks the traditional shape of High bay, penetrates deeper into consumers’ subconscious and leads a new round of consumer market.

Category: Tags: ,
Description

Product Description

Checkerboard series

Light source : Sanan SMD3030

System Power: 100W /150W/200W

Power Supply: Inventronics / sosen

Input Voltage: 90-305V

Lumen(LM): 130 00LM ~ 26 000LM

Beam Angle: 60/90

CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K

CRI(Ra): 70/80/90

IP Rating: IP66

Mech. Impact protection code: IK08

Controls and Dimming: DMX/RDM, 0-10V, DALI

Measure: 277*277*123/316*316*132/364*364*138mm

Fixture weight: 6.6~11.0lbs.(3.0~5.0kgs.)

Lifetime: 80 000H
