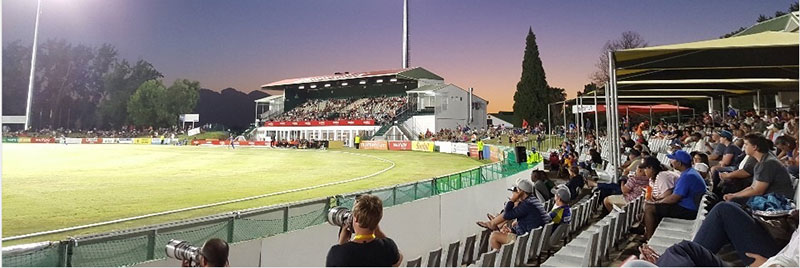

The Boland park Cricket ground in South Africa is an upgraded live TV venue, with two 40m and four and 30 metre light master, and a total of 360 1000W led fixture.The illuminance of the reserve reaches more than 2500lux and that of the peripheral areas reaches more than 2000lux. It saves 240,000 watts of energy for the stadium, not only saves the cost of procurement, but also makes due contribution to the operation cost in the later period.

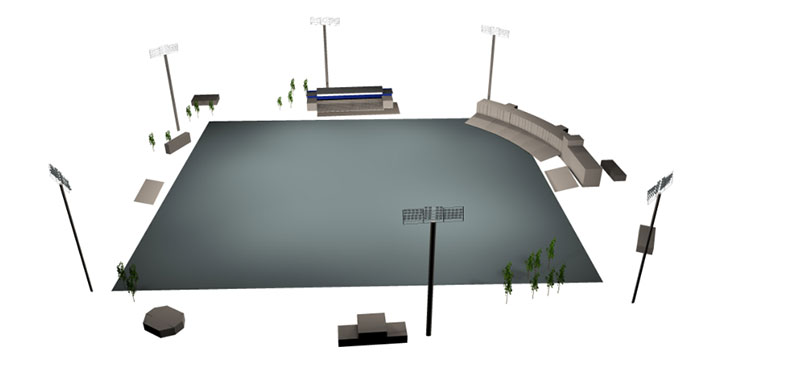

In this design, our designer moved the BHA software to conduct macro 3D display and calculation, so as to restore the environment of the site more intuitively. We have carried out simulation according to the closest environmental factors.In most cases, we will not consider the projection of each light and the impact of the real turf reflection in detail when we do the simulation, so some sites will be far from the actual lighting simulation, the use of this design can ensure the final lighting effect of the rigor.

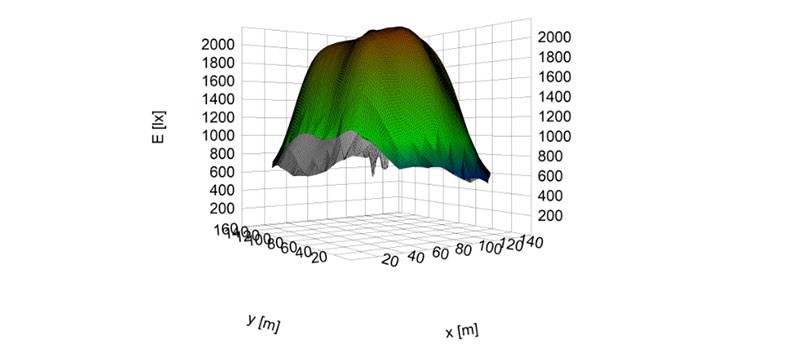

In the simulation of illumination level, the illumination of vertical and horizontal orientation is displayed respectively, which is more in line with the needs of this kind of site, and can reassure users, after all, this is a lighting system investment of several decades.Installing Green light LED can reduce the cost of running a stadium for at least 10 years without worrying about the impact of the lighting system.

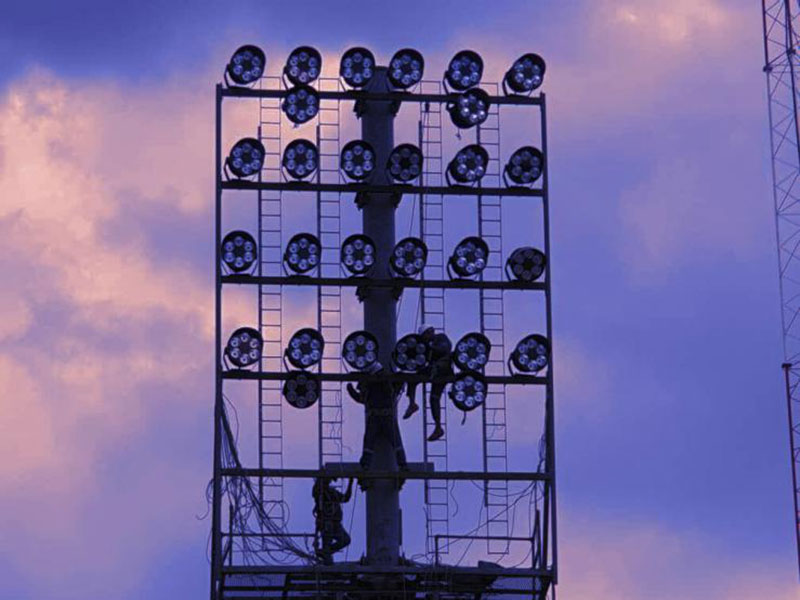

The installation is also in strict compliance with the engineer’s design, to ensure that every step is implemented in place, each lamp projection is in line with the requirements of the simulation effect. Including the design and installation of the lamp pole, it is necessary to strictly follow the coordinates designed during the simulation, otherwise, due to the different position of the light pole, the coordinates of all lamps must be changed with the change. And may have changed the effect of the original design.

In comparison with conventional HM lamps, the energy saving of LED lamps is close to 60%.But the green-light fixtures and the overall scheme mean that the total energy consumption is 30% less than the average LED.

Pls check the blew link to see the more detail information about Cricket ground light design:

Cricket stadium lighting best choice for biding

No damaging glare – the Green-light luminaire is designed to use secondary optics to concentrate most of the light in useful areas so that no one in the stadium can be affected or blinded by glare.

Pls check the blew link to see the product detail information:

GATLING SERIES 800W-1200W LED ARENA LIGHTS

Softer uniformity – allows both players and spectators to enjoy the visual atmosphere and the camera to capture the action easily.[email protected].

Pls check the blew link to see the product detail information:

CYCLOPS SERIES 240W-1800W
